Ultra Pro Underfloor Heating Panels
We manufacture a variety of panels for commercial and domestic installations for both Underfloor heating and acoustic flooring.

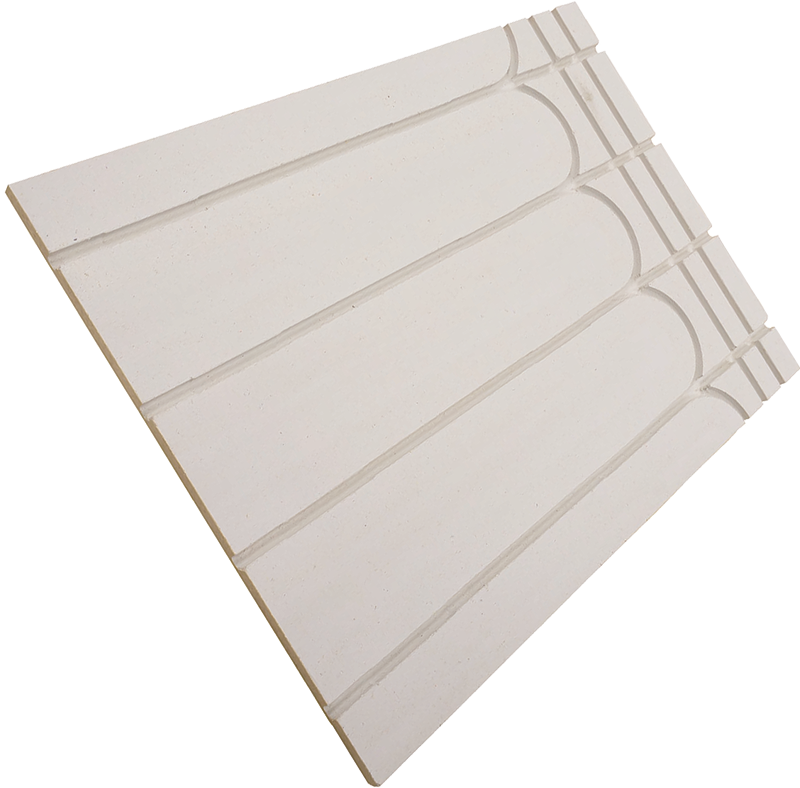

ULTRA PRO™ SR80
A low profile high-density gypsum fibre board manufactured from Fermacell® with a heat output of over 100W/m2.
It is designed with built-in end returns pipe spacing of 150mm for 12mm pipe.
The ULTRA PRO SR80 allows underfloor heating to be installed into existing rooms quickly which can be laid over solid or timber floors tiles or engineered wood can be laid directly onto the panel.
Carpet and vinyl we recommend our 6mm Fibcem panel.
Size. 800mm x 600mm x 18mm.
Weight. 10kg.
Density.1150kg/m3.
Thermal Conductivity. 0.32W/Mk.
Reaction to Fire. A2 (EN 13501-1)
BBA Certificate. 98/3538.
European Technical Approval. ETA 03/006
ISO 9001.
ISO 14001 2015.
Download PDF Datasheet

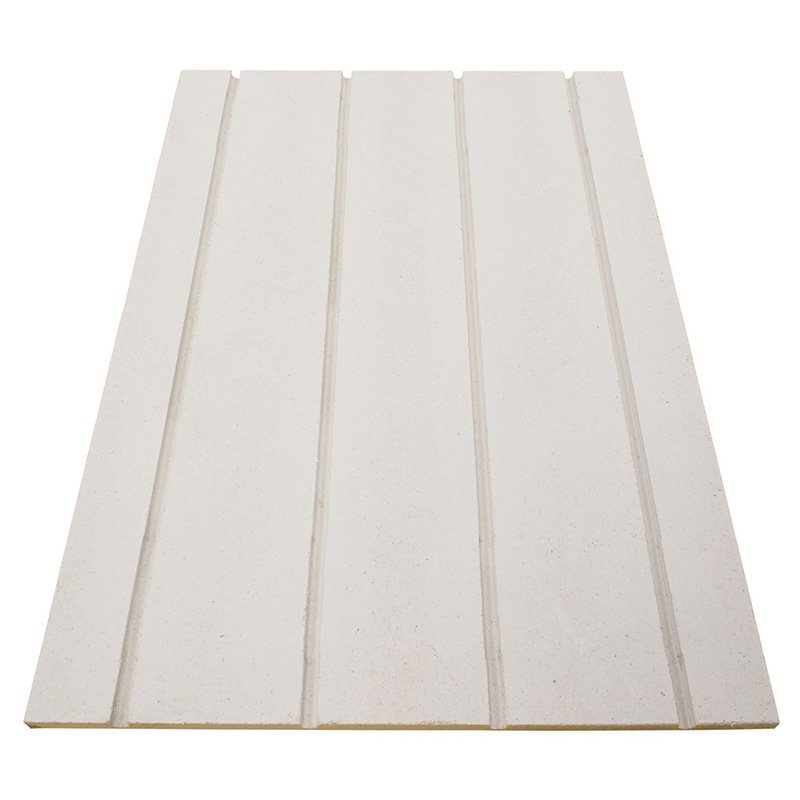

ULTRA PRO™S
A low profile high-density gypsum fibre board manufactured from Fermacell® with a heat output of over 100wm2. A low profile floor panel that can be used in both new build and retrofit projects.
Each panel is 18mm thick and 800mm x 600mm with castellated straight profiles spaced at 150mm centres to receive a 12mm underfloor heating pipe.
Size. 800mm x 600mm x 18mm.
Weight. 10kg.
Density.1150kg/m3.
Thermal Conductivity. 0.32W/Mk.
Reaction to Fire. A2 (EN 13501-1)
BBA Certificate. 98/3538.
European Technical Approval. ETA 03/006
ISO 9001.
ISO 14001 2015.

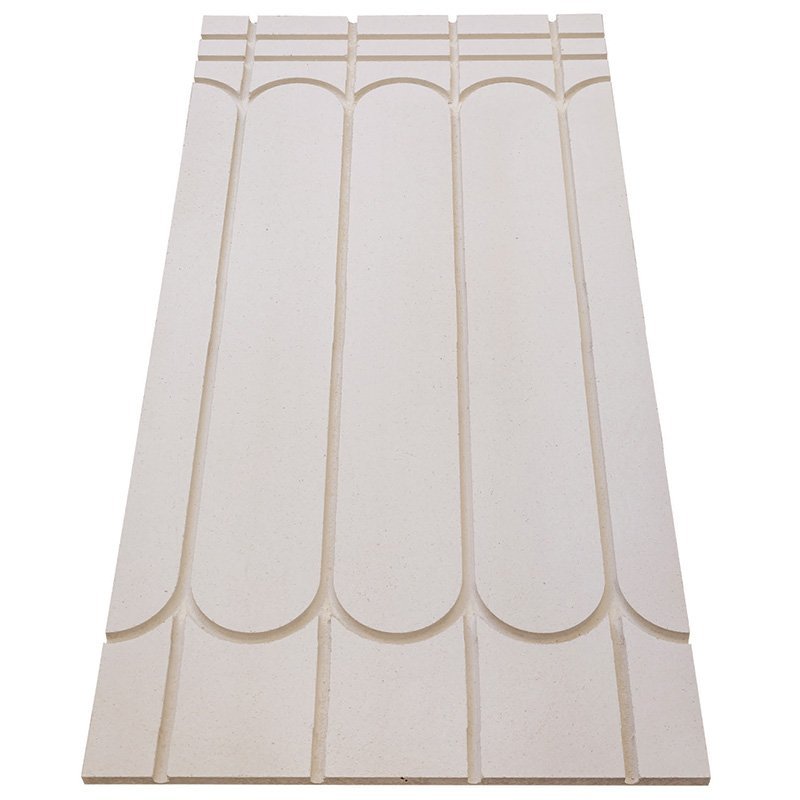

ULTRA PRO™ 18
Ultra Pro 18 is designed for underfloor heating systems to provide a low profile floor panel that can be used in both new build and retrofit projects. Each panel is 18mm thick and 1200mm x 600mm with routed straight and return grooves spaced at 150mm centres to receive a 12mm underfloor heating pipe.
The ULTRA PRO™ 18 board is manufactured using a high performance, non-flammable Fermacell® Gypsum fibreboard.
Size. 1200mm x 600mm x 18mm.
Weight. 14.6 KG.
Density.1150kg/m3.
Thermal Conductivity. 0.32W/Mk.
Reaction to Fire. A2 (EN 13501-1)
BBA Certificate. 98/3538.
European Technical Approval. ETA 03/006
ISO 9001.
ISO 14001 2015.

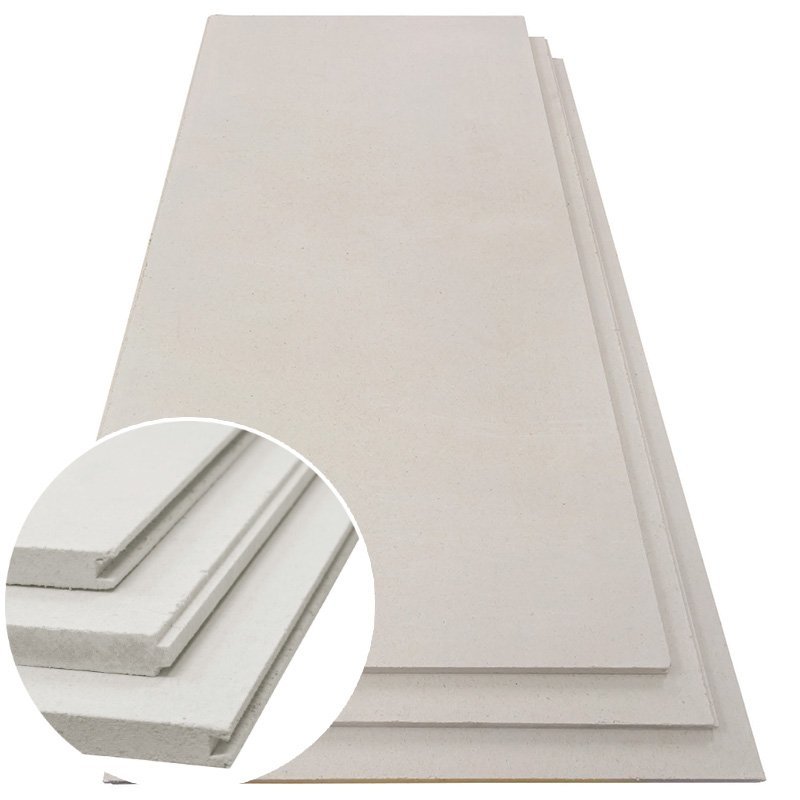

ULTRA PRO LOW-DECK™
A hi density floor panel for various floor finishes also suited for underfloor heating and impact sound floor installations. Using our Floorjet Underlay and edge strip 23dB- 25dB sound reduction.
Manufactured from Fermacell® gypsum fibre with a tongue and groove detail it increases the Thermal performance of various UFH systems.
Size. 1200mm x 600mm x 18mm.
Weight. 16.4kg.
Density.1150kg/m3.
Thermal Conductivity. 0.32W/Mk.
Reaction to Fire. A2 (EN 13501-1)
BBA Certificate. 98/3538.
European Technical Approval. ETA 03/006
ISO 9001.
ISO 14001 2015.

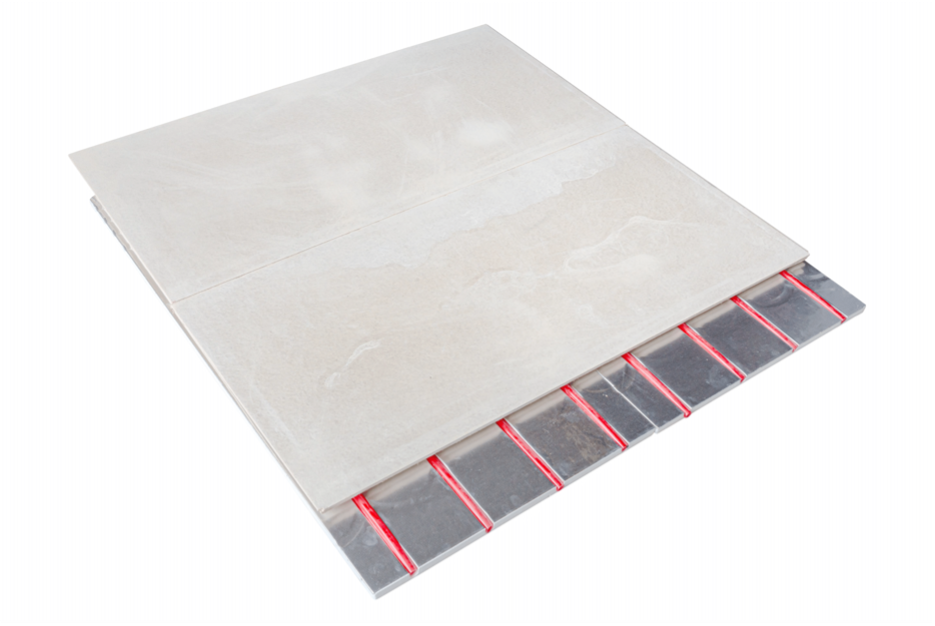

ULTRA PRO TRIBECA™
ULTRA-PRO® Tribeca is a high-performance, low-profile underfloor heating system designed for fast, dry installation. Precision-engineered panels support 12mm or 16mm pipe at 150mm centres, delivering efficient heat output with minimal floor build-up.
The solid, dual-density construction improves impact and airborne sound while reducing floor height increases on refurbishment and new-build projects, with ISO-certified quality and durable, moisture-resistant performance throughout installations.
Size: 1200mm x 600mm x 10mm/18mm.
Bottom Weight: 42kg/m3
Top Weight: 1150kg/m3
Pipe Centres: 150mm (accommodates 12mm or 16mm pipe)
Reaction to fire: A2 (13EN013501-1)
Swelling after 24hrs contact with water: <2%
BBA Certificate: 90/2439
European Technical Approval: ISO 9001 / ISO 14001 / 2015

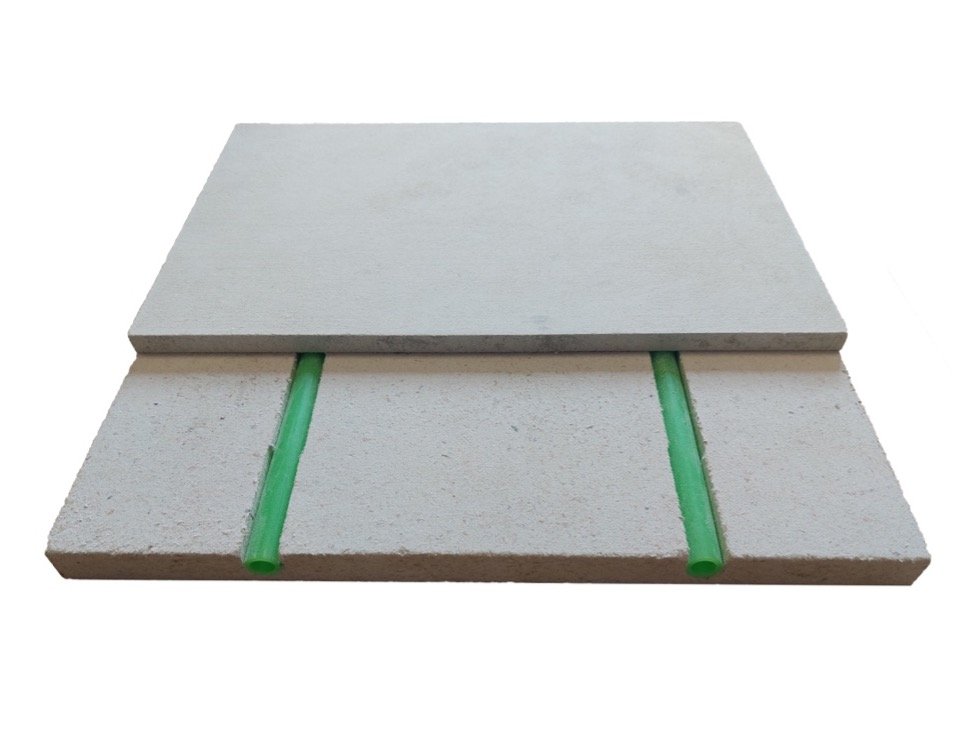

ULTRA PRO MELROSE™
ULTRA-PRO® Melrose is a high-performance, low-profile underfloor heating system designed for efficient heat delivery and fast, dry installation.
With a slim 28mm build-up, precision-engineered panels are routed for 12mm pipe at 100mm or 150mm centres, improving impact and airborne sound while minimising floor height increases for refurbishment and new-build applications, supported by ISO-certified quality, durability, and moisture-resistant performance.
Size: Top: 1200mm x 620mm x 10mm. Bottom: 1200mm x 620mm x 18mm
Bottom Weight: 9.15kg
Top Weight: 14.6kg
Pipe Centres: 100mm, 150mm (accommodates 12mm pipe)
Reaction to fire: A2 (13EN013501-1)
Swelling after 24hrs contact with water: <2%
BBA Certificate: 90/2439
European Technical Approval: ISO 9001 / ISO 14001 / 2015

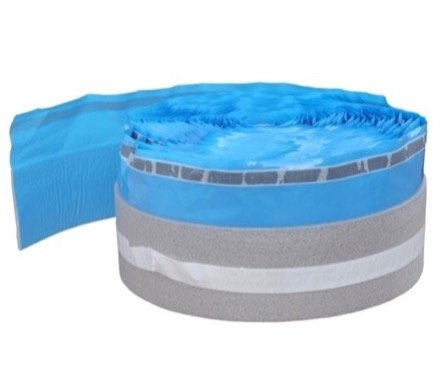

ULTRA PRO FLOORJET™
ULTRA-PRO® Floorjet Acoustic Underlay is a high-performance, ultra-lightweight solution delivering outstanding 23dB sound reduction. Precision engineered for reliability, it features a fully sealed 0.2mm polyethylene damp proof membrane and an integrated 50mm self-adhesive overlay strip, ensuring secure joints, easy installation, effective moisture protection, and long-lasting acoustic performance for modern flooring systems.
Floorjet Acoustic Underlay Dimensions
Length: 40M
Width: 1250mm (inc. 50mm adhesive overlay strip)
Thickness: 2.5mm
Floorjet RSL Edge Strip Dimensions
Length: 25M
Width: 150mm
Thickness: 8mm
Weight: 270g/m2
Damp Proof Membrane: 800 gauge polyethylene membrane
Sound Reduction: 23dB (BS EN ISO 10140-1 & BS EN ISO 717-2)
